MOD TA-15 Carbon Fiber Pickleball Paddle 16mm USAPA Approved

Product Categories

Carbon Fiber Pickleball Paddle [82]
T700 Carbon Fiber Pickleball Paddle [57]
Kevlar Pickleball Paddle [14]
Fiberglass Pickleball Paddles [29]
Composite Pickleball Paddles [13]
Professional Pickleball Paddle [63]
Training Pickleball Paddle [21]
Branded Pickleball Paddles [32]
Carbon Fiber Hockey Stick [6]
Elongated Pickleball Paddle [15]
Oversized Pickleball Paddles [16]
Indoor Pickleball Paddles [51]
Outdoor Pickleball Paddles [51]
Raw Pickleball Paddle [51]
Graphite Pickleball Paddle [51]

Dongguan Yiheng Sports Products Co., Ltd.

Contact Now

MOD TA-15 Carbon Fiber Pickleball Paddle 16mm USAPA Approved

Place of Origin : Guangdong, China

Model Number : Hyi-16mm MOD TA-15

Brand Name : HYi

MOQ : 1

Price : $20-24

Length : 41.9 cm

Handle Length : 14 cm

Weight : 225g +/-5g

Thickness : 16mm, 14mm

Core Material : PP Polypropylene Honeycomb Core with EVA Foam 16mm Core

Face Material : Vertical carbon fiber + horizontal glass fiber + vertical carbon fiber

Paddle Shape : Standard, Elongated

Size : 16.5*7.5*0.63 inch

RZ/RT Value : Close 30/40

Core Aperture : 8mm

Thermoforming Time : 25 minutes

Thermoforming Temperature : 130 degrees

Surface Layers : 3 layers

Grip Length : 140mm

Production Capacity : 100000 units/month

Contact Now

Product Description

item	value
Place of Origin	China
	Guangdong
Model Number	Hyi-16mm MOD TA-15
Material	Carbon Fiber, Toray carbon Fiber
Brand Name	HYi
Age Group	Children, Adults
Usage	Entertainment, Racing, Training
Paddle Length (cm)	41.9
Handle Length(cm)	14
Weight (g)	225g+/-5g
Product Name	MOD TA-15 16mm
Material	Toray Carbon Fiber
Logo	Accept Customized Logo
Color	White
Core Material	8mm PP Polypropylene Honeycomb Core with EVA Foam 16mm Core
Face Material	Vertical carbon fiber+horizontal glass fiber+vertical carbon fiber
Certificate	Meet USAPA Standard
Size	*16.57.50.63inch*
RZ/RT Value	Close 30/40

MOD TA-15 Carbon Fiber Pickleball Paddle 16mm USAPA Approved

Notice：

1：If the link you see allows you to place an order directly, we will update the logistics status for you within 48 hours on non holiday days and 72 hours on holiday days

2：If you have customization needs, please contact customer service,

The interior is filled with 8mm polymer honeycomb , Surrounded by a white EVA foam.

The outermost layer is a yellow foam encased in carbon fiber.

The handle is wrapped in carbon fiber fabric

The honeycomb was coated with resin.

We apply resin to the honeycomb surface.

Then cover it with carbon fiber plates.
The composition structure of the carbon fiber plate is composed of 3 layers.

The first layer is vertical Toray carbon fiber.

The second layer is a horizontal glass fiber.

The third layer is vertical Toray carbon fiber.

After the carbon fiber plate is glued to the honeycomb, it is put into the mold for thermoforming.

After 25 minutes of thermoforming, we can get a semi-finished 360-degree GEN3 pickleball paddle.

Next, we print the surface pattern. Assemble edge guard strips and GRIPS. We end up with a finished GEN3 pickleball paddle.

When glass fiber is added to the surface of the carbon fiber plate, paddle will have more control and spin in use.

The EVA foam filled propulsion core will make the paddle have more powerful resilience.

GEN3 paddle will give you a great experience in pickleball games.

Custom Process

Step1; Choose the paddle size and shape

The USAPA standard stipulates that the sum of the length and width of the entire paddle cannot exceed 24 inches

16.5 * 7.5-inch flat top shape and 140mm grips length，suitable for forward attacking players with one or two hands, tending towards attack and balanced control, with good stability

16.5 * 7.5-inch flat top shape and 140mm grips length ，Suitable for forward and backward one handed attacking players, with a larger sweet zone and higher stability

16 * 8-inch racket, suitable for defensive players, with high stability in ball control

16.5*7.5 inch fan-shaped top and 140mm has lower wind resistance and is suitable for backhand forward attacks,

Step2; Choose the material

Beginners often use fiberglass rackets, which often have insufficient rebound and rotation strength, and are prone to breakage during cold pressing.

Most advanced players have started using carbon fiber material and using thermoforming technology to produce it, which has good resilience, friction, and service life

Semi professional and professional players usually have strict requirements for strength, rotational friction, and ball control. The structure from the core to the surface needs to be specially customized to achieve a balanced level.

The size of the honeycomb core aperture affects the elasticity and sweet zone of the finishing process. The larger the honeycomb core aperture, the larger the corresponding sweet zone, but the strength will be smaller. Surface materials are commonly divided into three categories: glass fiber, carbon fiber, and Kevlar Among them, carbon fiber is divided into several categories based on strength, namely T300, T700, T800, T1000, 3K, 12K, and 18K

Different surface structures can also bring different effects

Step3 Pre type

The hot forming process requires manually injecting foam into carbon fiber

And wrapping it 360 degrees in all directions to enhance the overall sealing, rebound strength, and expand the sweet zone of the racket.

The handle after hot forming is also more sturdy

Step4 Thermoforming

Place the pre formed honeycomb core and

carbon plate into an aluminum mold and

preheat it for 25 minutes.

The carbon fiber material in the mold is usually hot pressed at a high temperature of around 130 degrees until we have a 360 degree integrated rough embryo.

Polish the carbon wire extruded after heating to make its overall edges smooth

Step5 Printing Patterns

The patterns on the racket are usually printed using UV, especially carbon fiber materials. If you want to preserve the most primitive carbon friction, most will only choose to print the line type.

The use of laser engraved patterns can cause significant damage to the surface of the racket.

If you prefer patterns with larger areas, in order to preserve surface friction, you will choose to spray particle paint

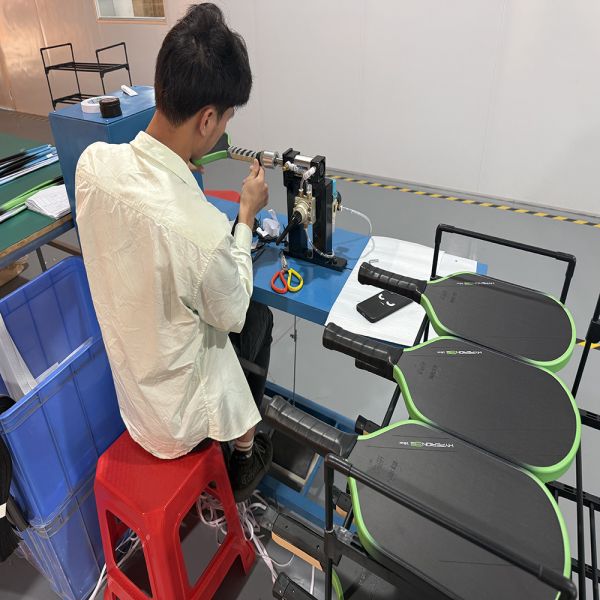

Step6 Packge the edge and grips

Customizable color, material, and craftsmanship of the edge strips, as well as the color, material, and style of the grids

Company Profile

Dongguan Hengyi Sports Equipment Co., Ltd. is a professional manufacturer specializing in the research and development of pickleball paddle, with its main export market being the United States.

We have complete production capacity and excellent research and development capabilities.

Currently, our main products are GEN3 EVA filled cores and Edgeless technology, which are highly praised in the market.

We provide OEM services for well-known brands and also serve various e-commerce sellers.

Our hot forming capacity is 100000 yuan per month, and our cold pressing capacity is 300000 yuan per month We have 14 sizes of hot forming molds.

By using our molds, products can be delivered within 5 days.

The sample customization cycle is 7 days, and you can customize your own exclusive pattern with just one piece. Low MOQ customization

The company uses imported Toray carbon fiber from Japan, which has higher quality carbon fiber compared to most manufacturers in the market.

At the same time, we have factory systematic certifications such as BSCI, ISO9001, ISO14000, etc.

Better understanding of USAPA and UPA-A standards to help you build your exclusive brand faster and with higher quality

FAQ

Q:Are you a manufacturer or a trader ？
A:We are a manufacturer, located on the 5th floor of Building A, Huaxia 3rd Road, Qiaotou Town, Dongguan City, Guangdong Province, China. Dongguan Hengyi Sports Equipment Co., Ltd

2.

Q：We are an e-commerce entrepreneurial seller, can you provide me with any support？
A：Our factory can provide a dropshipping service, serving various e-commerce sellers such as Amazon AliExpress LAZADA, EBAY, etc. We can also provide fast sample delivery services, with cold pressing process sampling taking 3-5 days and hot pressing process sampling taking 5-7 days. Can produce 1000 hot pressed units per day, using existing molds. Delivery within 3 days for less than 100 units

3.

Q：Can you provide comprehensive customization capabilities？
A:We have experience in brand OEM and can customize the inner core and surface material structure, pattern, edge strips, grip, and MOQ=1pcs according to our needs

4.

Q：What materials do you usually use？
A：Usually, we use Japanese Toray carbon fiber, which has superior strength and wear resistance compared to T700 in the same class. If there are other material requirements, we can do any customization Powerful production process,Hot forming process, monthly production capacity of 100000 units, cold pressing process.

5.

Q：what services can we provide?
A：Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
